Running Line Tensiometers (Cable Line Riders) and Load Monitoring Rental Equipment - Available Immediately
Rental RLT, Rental Dynaline, Rental Tensiometer, Rental MTNW, Rental Load Monitoring
Complete Portable Load Monitoring System

Stocking rental facilities in Seattle, WA and in Houma, LA.

We rent running line tensiometers (cable line riders) for short and long term projects.  Our RLTs can accommodate up to 4.5” wire rope and 1 million pounds of line tension.

Systems are shipped with traceable calibration certificates to allow for immediate mobilization offshore.

We have increased our global rental pool to offer turn-key calibrated (8) Eight Point Anchor Winch Monitoring Systems available for up to 2" wire rope. We maintain a full rental inventory of Line Riders for wire rope up to 4.5" in diameter in Seattle for global mobilization.

Contact us to discuss your project's requirements.



Rugged Controls Rental Fleet

Line Riders
 Model  Max Capacity  Max Rope Diameter
RL05  10 ton / 89 kN 1" / 25 mm
RL10  45 ton / 400 kN 1.5" / 38 mm
RL20 150 ton / 1335 kN  2" / 52 mm
RL30 375 ton / 3737 kN  3" / 80 mm
RL40 500 ton / 4450 kN   4.5" / 115 mm

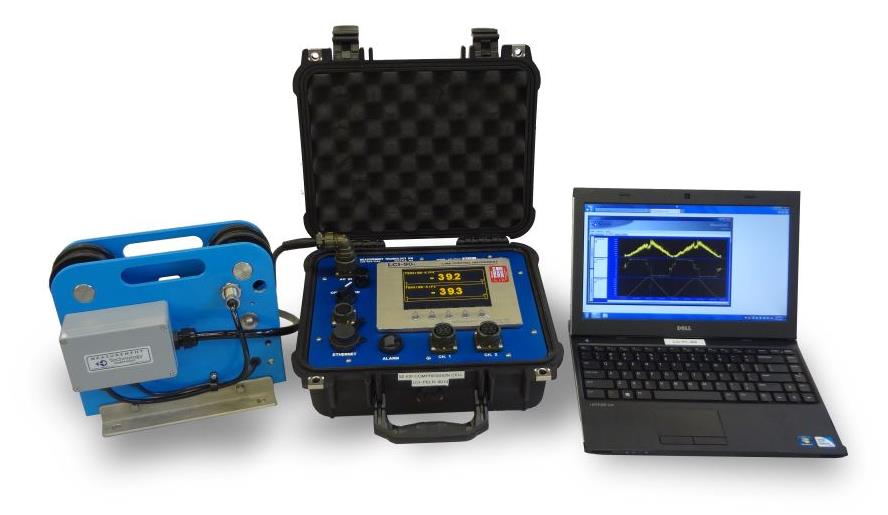

Line Rider Rentals are provided with calibration certificates, an LCI-90i display in a portable case, and our WinchDAC software on a laptop for data-logging. WinchDAC data acquisition software time-stamps the incoming data so that it is easy to match up with other data in post event analysis; automating and simplifying data correlation and report generation.


Tension Links
Model  Capacity  Shackle Size
TL10  5 ton .875"
TL50 25 ton 1.75"
TL100 50 ton 2"
TL200 100 ton 3"
TL300 150 ton 3"

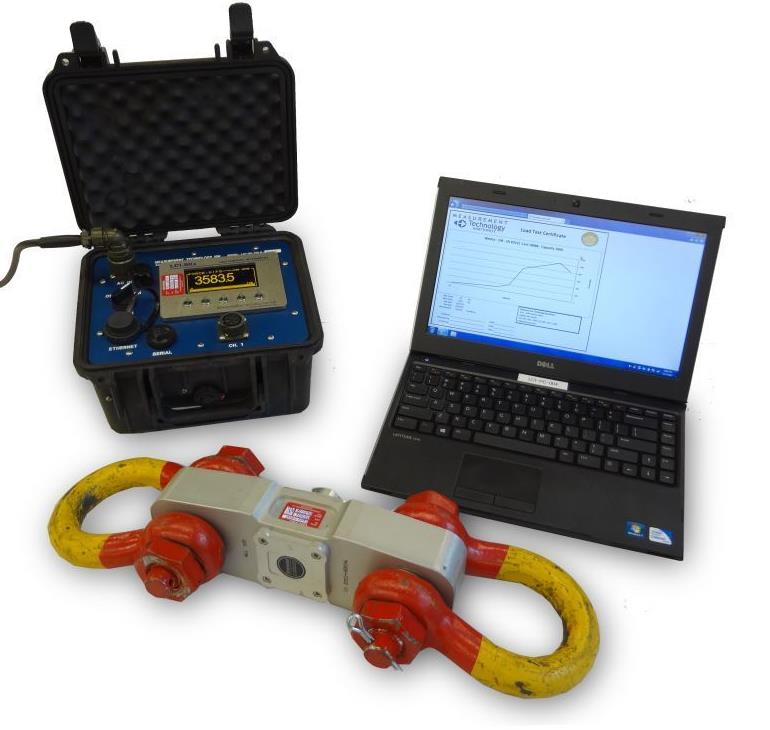

Tension Link Rentals are provided with shackles, calibration certificates, an LCI-80x display in a portable case. Data is stored on removable USB memory sticks for post-analysis and report generation. *other tension links available upon request.

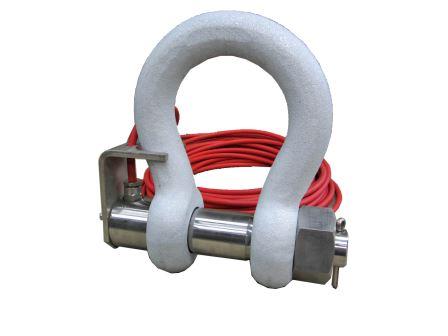

Load Shackles

Cabled and Wireless Load Shackles available from 5 to 200 tons capacity.

Load Shackle rentals are provided with a calibration certificate, an LCI-80x display in a portable case. Data is stored on removable USB memory sticks for post-analysis and report generation.

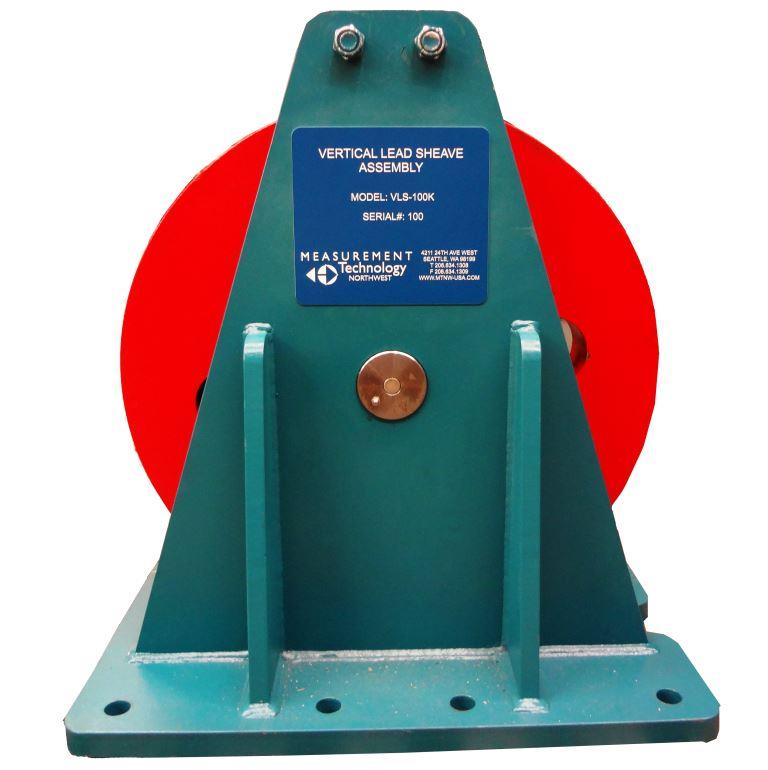

Vertical Lead Sheaves (VLS)

Vertical Lead Sheaves (VLS) with Tension, Speed, and Payout Monitoring. 18" OD to 30" OD units in stock.

VLS rentals are provided with calibration certificates, an LCI-90i display in a portable case, and our WinchDAC software on a laptop for data-logging. WinchDAC data acquisition software time-stamps the incoming data so that it is easy to match up with other data in post event analysis; automating and simplifying data correlation and report generation. Data is stored on removable USB memory sticks for post-analysis and report generation.

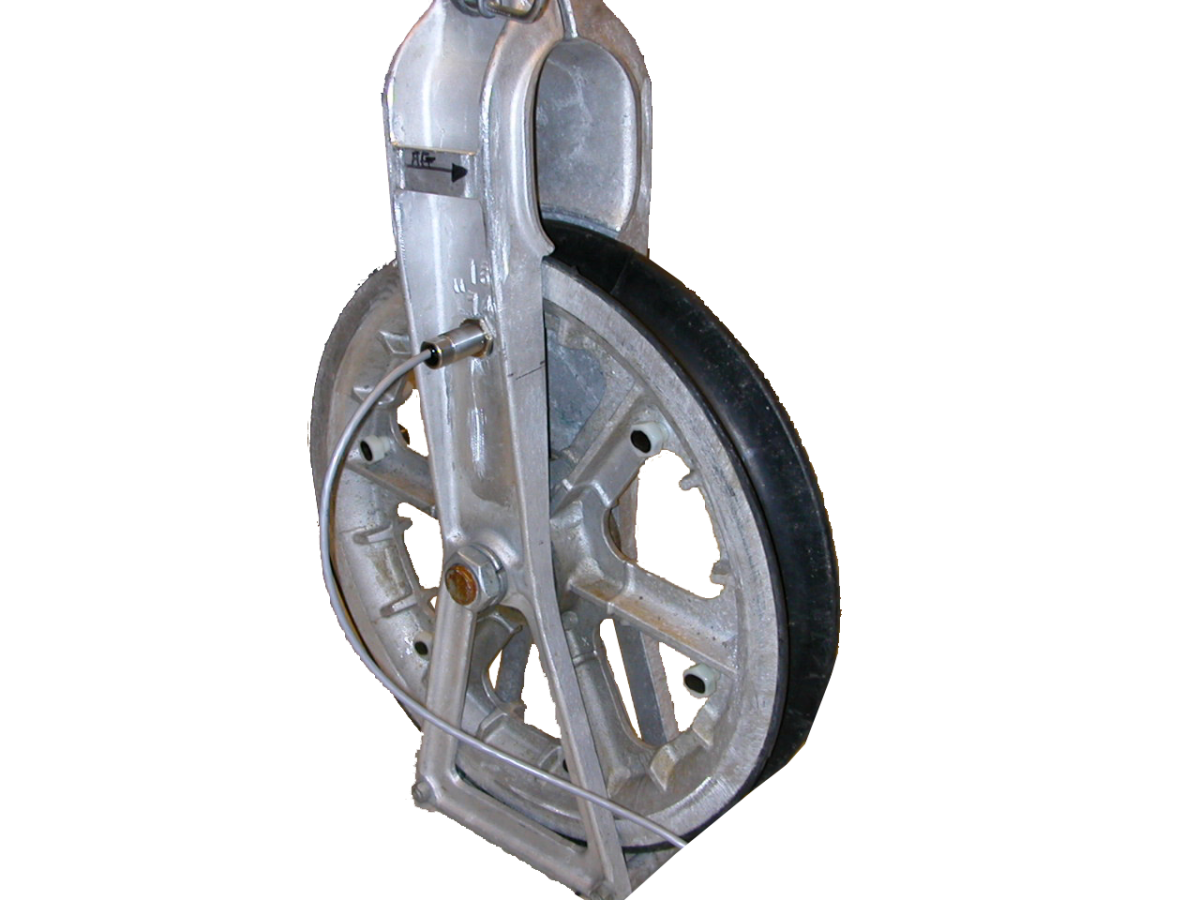

Instrumented Hanging Blocks


Instrumented Hanging Blocks for Speed, and Payout Monitoring. 12" OD to 28" OD units in stock.

Instrumented Hanging Blocks are provided with calibration certificates and an LCI-80x display in a portable case.

Please note: The rental period begins and ends at the loading dock of the originating Rugged Controls facility.



Depending on your application, we can ship a rental RLT within 2-3 days or up to 3 weeks if we need to manufacture new sheaves.

Running Line Tensiometer Rentals are provided with:

  • RLT with sheaves sized for specific wire diameter
  • Calibration Certificate(s)
  • LCI-90i Line Control Display in a portable Pelican Case enclosure
  • Laptop computer with WinchDAC Software for data-logging

WinchDAC reporting features offer traceability for lifts, tests and other critical rental applications.

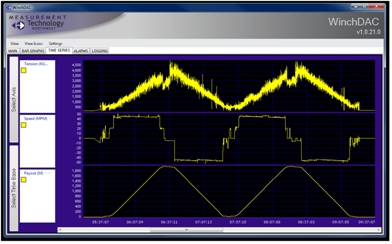

WinchDAC Line Graph – Tension, Speed, & Payout

The LCI-90i display in a Pelican Case connected to WinchDAC for data-logging.

We Rent:

  • Running Line Tensiometers (RLT)
  • Tension Links
  • Load Shackles
  • Vertical Lead Sheaves (VLS)
  • Instrumented Hanging Sheaves

To quote your rental accurately we will need:

  • Wire rope diameter
  • Peak expected line tension
  • Environmental/hazardous rating
  • Start date & duration of the rental

About Us

Rugged Controls is an ISO 9001 certified manufacturer of rugged programmable controllers, sensors, instrumentation, controls and automation equipment used in industries ranging from oil & gas, industrial, oceanographic to mining to construction. Our brand of multivariable controllers is continually selected in mission-critical applications where rugged durability, viewability, accuracy and data acquisition is required.
