Smart Shackles - Instrumented Load Shackles

THE ONLY U.S. MADE LOAD SHACKLE WITH FULL CERTIFICATION, TRACEABILITY AND WARRANTY DIRECT FROM THE SHACKLE MANUFACTURER
Load Shackle, Smart Shackle, RC Smart Shackle, Instrumented Load Shackle, Rugged Controls, Load Testing, Load Monitoring
MTNW Rugged Controls Skookum Smart Shackle, Instrumented Smart Shackle, LCI Smart Shackle, Load Shackle

Rugged Controls has partnered with Skookum Gold Standard Forgings to provide the highest quality, made in USA load shackles.

Designed for marine, heavy lifting and extreme applications, the Smart Shackle range of load shackles feature an innovative 17-4 stainless steel pin, manufactured complete with anti-rotation plate and an optional loading centering bobbin. Customers who require instrumented shackles for line tension, heavy lifting,  construction and other monitoring applications can select from our list of stock and quick ship sensors. We stock 5/8” to 3” (3.5T to 117T capacity) Smart Shackles in cabled and wireless versions.


Features and Benefits:

  • Partner with Skookum Gold Standard Forgings
  • Traceable calibration certificate provided
  • Environmentally Sealed (IP67)
  • 17-4 SS Shackle pin material
  • Optional Wireless Display
  • Capacities from 250 lbs to 1500 Tons on request
  • Compatible with digital displays, PLCs, DAC, etc.
  • Made in the USA

Smart Shackle - Load Shackle Stock Capacities:

MODEL SS 3.25T SS 7T SS 12T SS 52T SS 117T
CAPACITY (tons) 3.25 7 12 52 117
WEIGHT (lbs) 2 5.5 8 44 136
NOM. SIZE (in) 5/8 1 1 1/8 2 3
ACCURACY +/- 1% of full scale
PROTECTION NEMA 4X / IP 67
DESIGN FACTOR 300% of full scale
PROOF TEST 150% of full scale
OUTPUT mV/V cabled standard, 4-20mA cabled, and wireless optional
OPERATING TEMP -25° C to +70° C




Display Options:

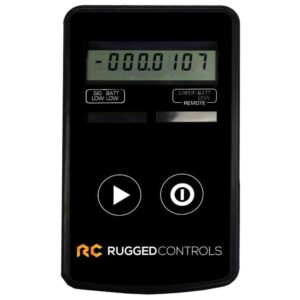

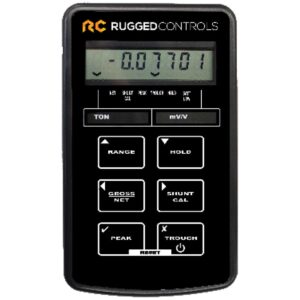

Cabled Handheld Display Wireless Handheld Display
