For use in combination with Rugged Programmable Controllers (RPCs), Enclosures offer additional protection from harmful environments, and are available for either permanent installation or portable applications.

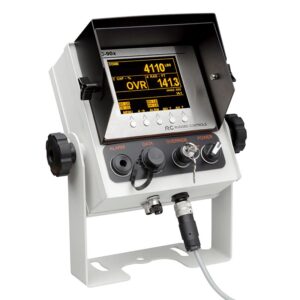

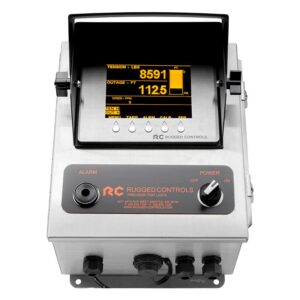

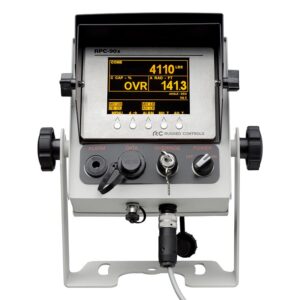

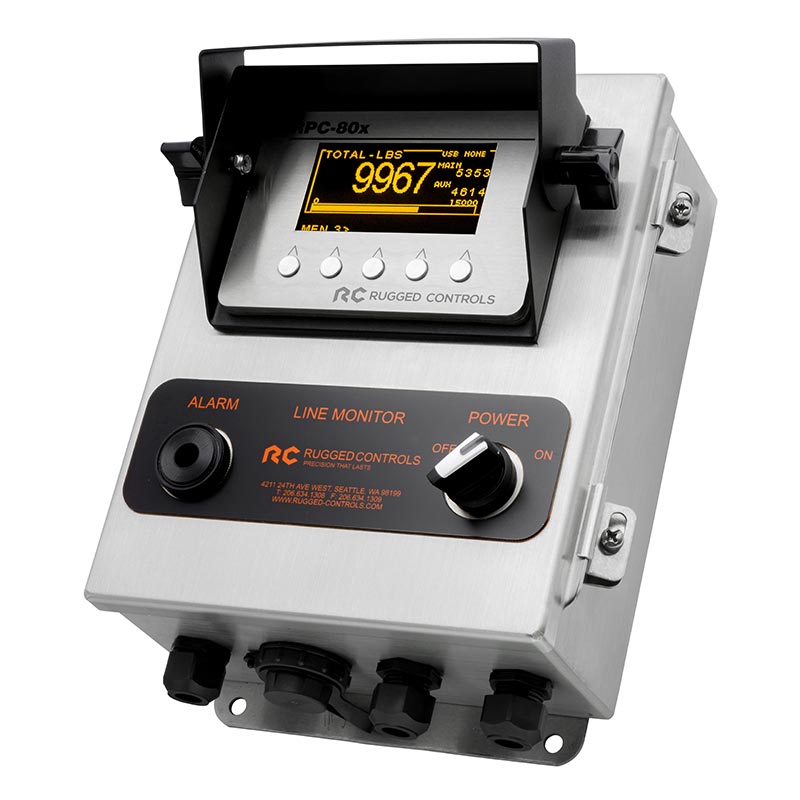

Deck Enclosure:
Recommended for on-deck applications.
Manufactured from 304 stainless steel.
Sun visor for glare protection and enhanced screen visibility. Optional bracket attachment.
Door-mounted RPC facilitates easy access for wiring, data retrieval, troubleshooting, and firmware upgrade.
Power switch and alarm for easy operation.
Custom and hazardous options available.
USB or Ethernet data ports. AC or DC input power.

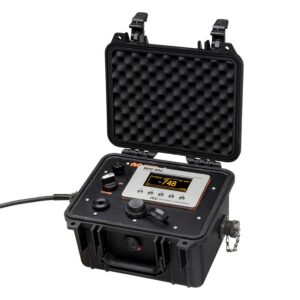

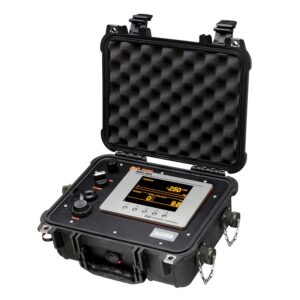

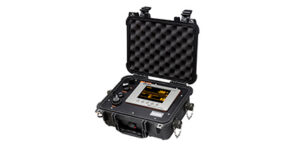

Pelican Case Enclosure:
Recommended for portable applications.
Manufactured from polypropylene, making it watertight, dust-proof, and crushproof.
RPC mounted to internal panel.
Field and power cables connect to side for easy access without need to open Pelican Case.
Panel-mounted power switch and alarm for easy operation.
USB or Ethernet data ports. AC or DC input power.

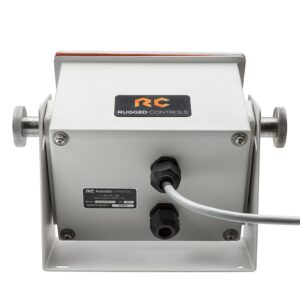

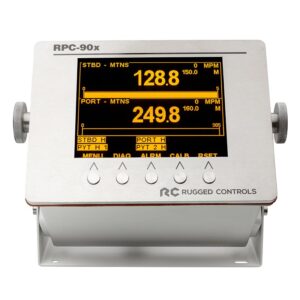

Gimbal Enclosure w/Bracket:
Recommended for bridge, cab, or lab locations where space may be limited.
Manufactured from 304 powder coated stainless steel.
Gimbal bracket mounting for optimal viewing angle.
Two 1/2” NPT knockouts on back. Glanded cable entry/exit.
Optional power switch and alarm for easy operation. USB or Ethernet data ports.
AC or DC input power.
Explosion Proof Enclosure:
Recommended for use in environments with risk of exposure to combustible fuels. Designed to contain ordinary location instrumentation components.
Manufactured from copper-free aluminum or 316 stainless steel for ultimate protection. IP66 gasketing with stainless steel hardware.
Factory drilled and tapped holes for glanded cable entry.
Internal isolation barriers allow connection to any hazardous sensor.
Viewing window to see displayed measurements on RPC-80x or RPC-90x in real-time.
Various operators can be installed on doors such as switches and push buttons. Typical functions: ON/OFF, TARE, and PYT RESET.
Hazardous rating: Class 1, Division 1, Zone 1, and IECEX Ex d.
