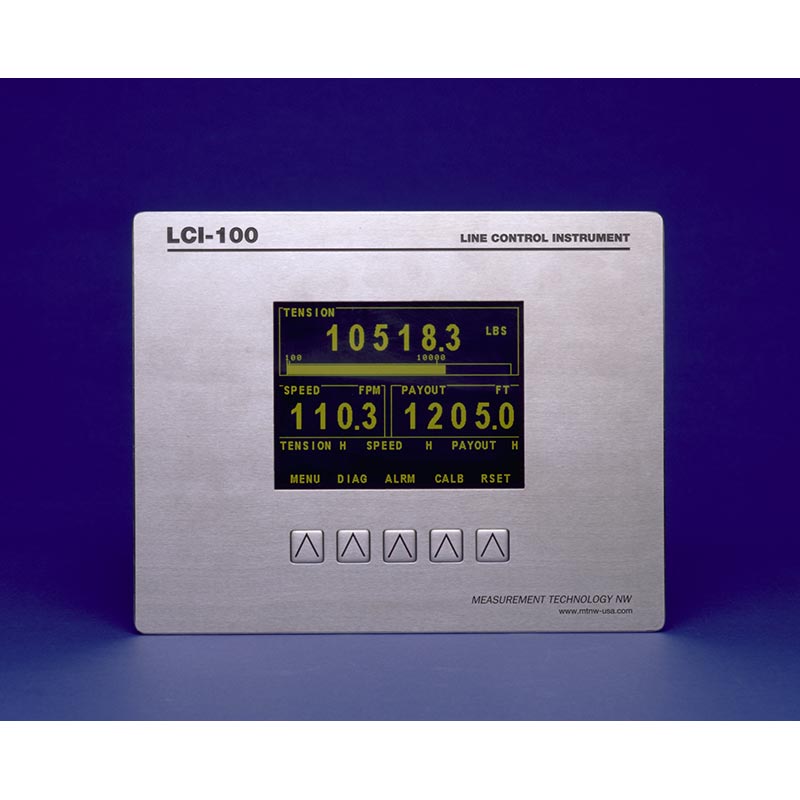

The LCI-100 is a robust, full-featured instrument that offers exceptional performance and readability in demanding environments from -40°C to +75°C. Its multi-channel capabilities allow for future expansion, and its bright 320×240 electroluminescent display permits wide-angle readability of tension, payout, and line speed status regardless of the lighting conditions.
-
The heavy-duty 316 stainless steel front panel and sealed tactile pushbuttons are designed to perform flawlessly in wet and corrosive environments. Eight I/O channels and serial networking capability provide flexibility in line monitoring, weighing, or SCADA applications, and the LCI-100 can be linked with up to 32 remote LCI-90R displays to create a shipwide monitoring network.
-
The UL-approved LCI-100 also features an easy-to-follow English language menu for field calibration changes, I/O channel configuration, alarm settings, network settings, and screen layout – all accessed through the pushbutton keypad.
FEATURES AND BENEFITS:
320 x 240 EL (Electroluminescent) Display Readable In All Conditions.
Five Brightness Levels and a Full 160° Viewing Range.
Fully Sealed Stainless Steel Front Panel with Available Watertight Rear Enclosure.
Six Alarms, Independently Linked to Any High/Low Setpoint Parameters.
On Screen Calibration, Diagnostics, and Configuration Security.
UL and CE Rated, RoHS Exempt.
