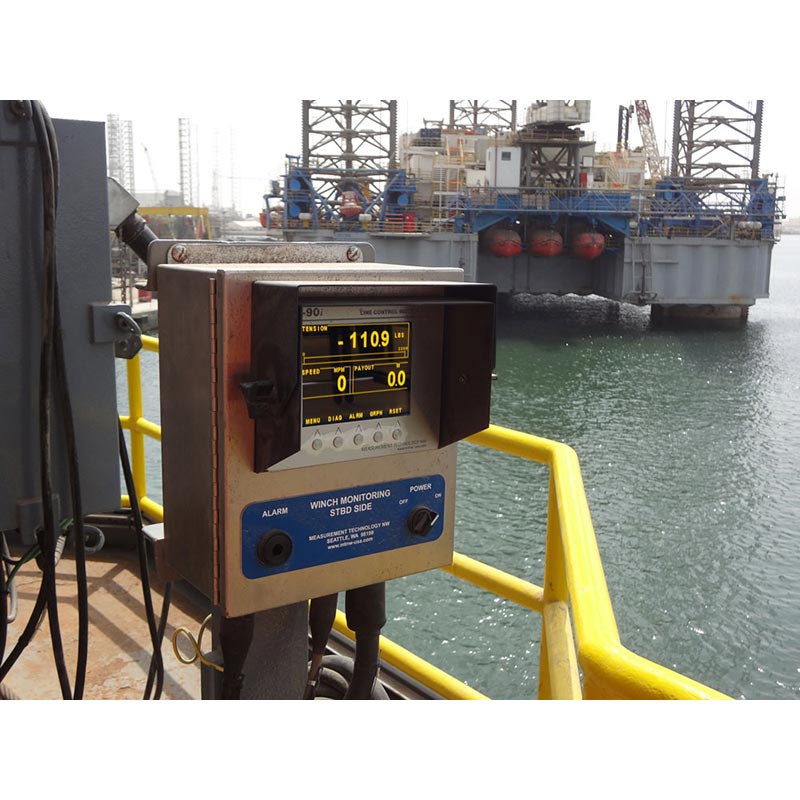

The LCI-90i-IS Hazardous Location Display is a new, next-generation rugged programmable controller that combines advanced signal-processing capabilities with the rugged reliability that made the original LCI-90 display a popular choice for new winch projects and retrofits of existing line monitoring equipment. Versions of the UL Approved Class 1, Division 2 Rugged Programmable Controller are available for winch, pump, crane, tank, and torque applications.
-
Five fully-sealed pushbuttons within a heavy- duty 316 stainless steel front panel access an easy-to-follow English language menu for field calibration changes, I/O channel configuration, alarm settings, network settings, and screen layout – all intuitive and right at your fingertips.
-
Sensor data, parameters, alarms, controls and graphs are displayed on a bright 320×240 electroluminescent display for unmatched 160° readability in all light conditions. Four I/O channels, serial networking capability, plus USB and Ethernet ports provide flexibility in line monitoring, weighing, or SCADA applications. An internal CF disk permits on-board data logging, and the LCI-90i-IS can be linked with remote displays to create a real-time monitoring network.
FEATURES AND BENEFITS:
US/CN UL certified for Class 1, Division 2, Groups A,B,C,D, T5 Hazardous Locations
320 x 240 EL (Electroluminescent) Display Readable In All Conditions
Full programmability via English language menus.
Six alarms, independently linked to any high/low setpoint parameters.
Configurable parameter position, scale, and units.
Network configurable.
Three modes of analog sensor calibration.
On screen calibration, diagnostics, and configuration security.
Watertight enclosure & mount available.
