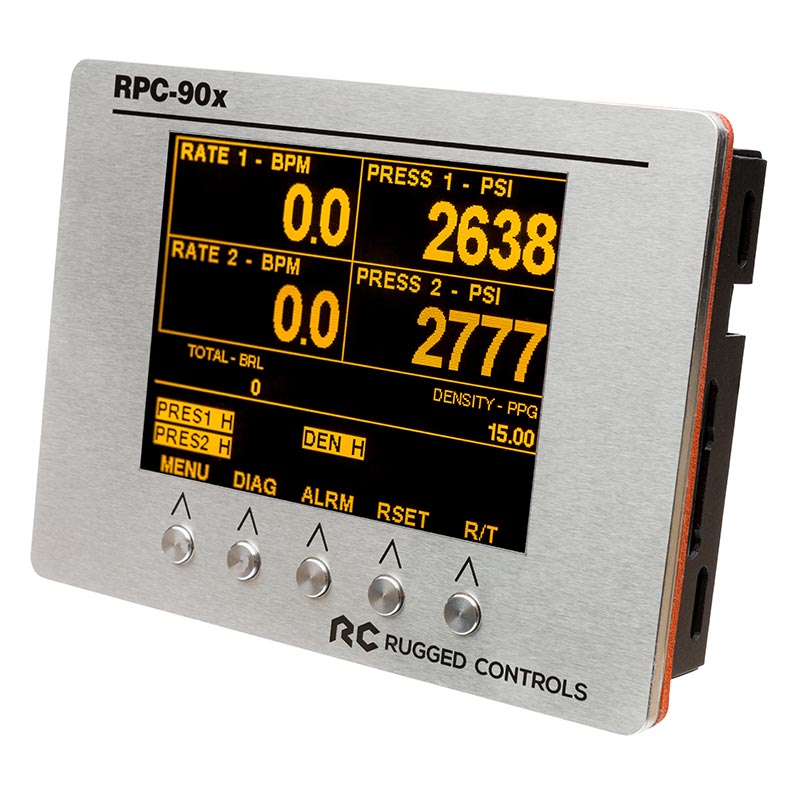

The RPC-90x is a next-generation Rugged Programmable Controller (RPC) designed for advanced signal processing and dependable performance even in the most demanding environments.
-
Its intuitive onboard programming and configurable inputs/outputs support a wide range of measurement types, including tension, torque, weight, and pressure, and its high-visibility display ensures clear readouts regardless of light, angle, or weather conditions.
-
Engineered for versatility and performance, the RPC-90x fits seamlessly into both new and retrofit projects.
FEATURES AND BENEFITS:
Electroluminescent (EL) display offers bright and clear visibility at angles up to 179°.
Heavy-duty 316 stainless steel front panel with five fully sealed, tactile buttons for superior durability to withstand harsh environments.
Onboard browser interface allows for remote measurement viewing, remote access and control, downloading internal data files, and upload/download of settings profiles. Firmware can be upgraded remotely or via USB.
Real-time data available to users and other Rugged Controls devices via RS-485, RS-232, and (2) ethernet ports. Internal and external data logging options for internal memory, USB, and PC applications.
Full programmability via English language menus. Configurable measurements, alarms, and any other standard setting. No custom firmware required. 4 key functions configurable from menu system provide ultimate flexibility for operators.
Multiple sensor input channels (rotational, analog, and digital) support high-level and strain gauge analog inputs and a variety of serial or ethernet enabled sensors. Configurable counter input channels are available for quadrature, pulse, or sinusoidal signals.
Up to 20 alarms, independently linked to any measurement, to ensure the highest degree of safety for personnel and equipment.
Timestamp measurements and alarms. Configurable measurements with no custom firmware required. On-screen diagnostics /alarm log.
Displays can be set up as either local or remote. Configure up to four run-time screens and easily toggle between screens with front-panel button.
Network configurable data ports. High speed data capture up to 1000 Hz.
Each unit is pre-loaded with a wide variety of application specific profiles (for example: single winch, single cement, safe load indicator, dual nitro, and more) that don’t require the user to be a software expert.
Password enabled security to prevent unwanted configuration tampering.

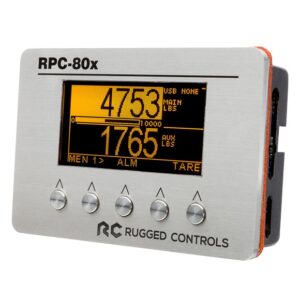

RPC-LINK protocol allows connection between RPC-90x or 80x products for seamless data exchange. Optional data logging and report generating software available.
Class 1, Division 2 hazardous certification.
The RPC-90x is an equivalent (or better) alternative/replacement for Metrox and MD Totco Displays. Rugged Controls is happy to assist with any questions regarding equipment replacement or retrofit.
