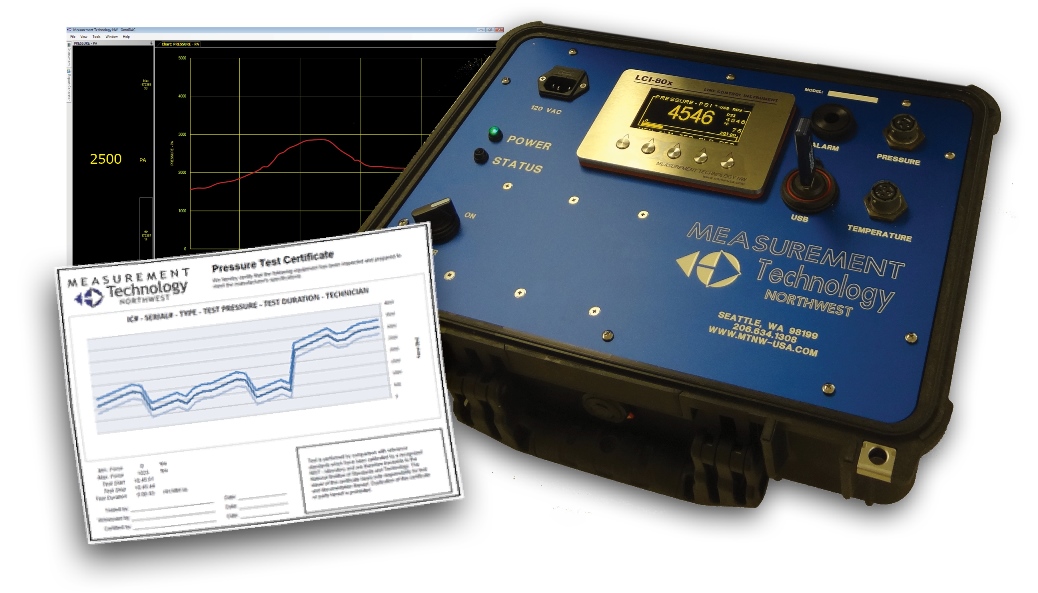

LCI-80x Digital Chart Recorder

LCI-80x Digital Chart Recorder

Advanced portable pressure & temperature data acquisition system

Key Capabilities

  • Monitors and logs Pressure (PSI), Temperature, Peak PSI, and timestamps measurements to USB memory or SenseDAC data acquisition software

  • Audible and Visual Alarms alert operators to configurable setpoint limits

  • Portable Pelican case with Battery Backup provides system power for hours between charges

  • USB memory enables turnkey reports after tests are completed

  • Available up to 40,000 psi

  • Custom PDF reports with customer logo, header, and contact info

  • Start and stop multiple collection runs from front panel

  • Record the averages, averages and peaks, or just the pressure indication

  • Real-time monitoring software allows for a remote display for lab environments

  • Optional wireless interface to SenseDAC software

  • Optional branded hardware faceplate

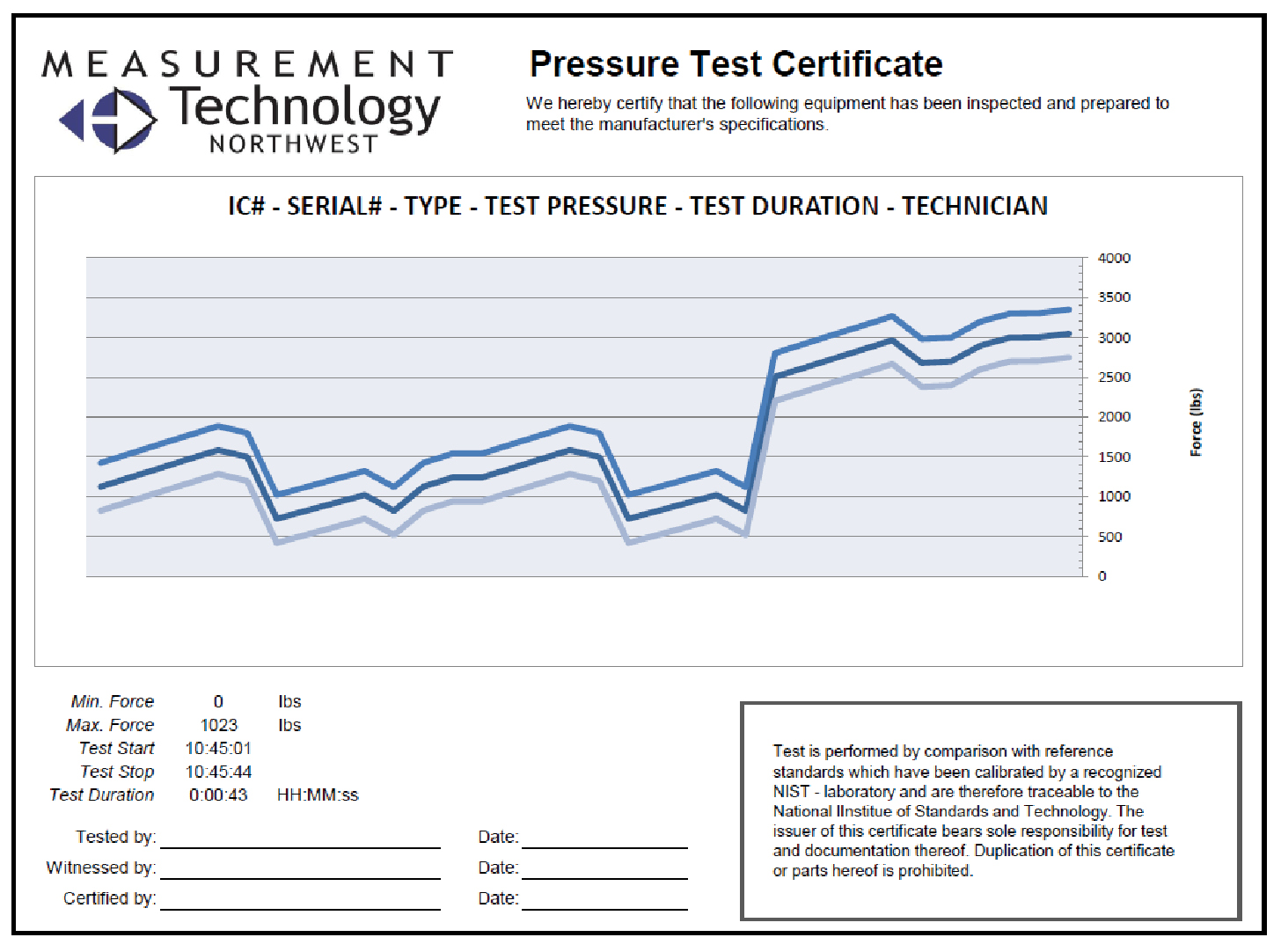

Certificate Options - Real time or post process

  • Custom report logo

  • Configurable header fields

  • Adjust chart colors and settings

  • Pressure & temperature chart is standard

  • Test details

  • Company address and contact information

  • Convert test data from USB to PDF in portable field units

  • Create PDF from reat time measurement data in SenseDAC



Applications:

  • Field calibration
  • Chart recorder replacement
  • Pressure safety valve (PSV) testing
  • Pipeline static pressure testing
  • Leak testing
  • Wellhead monitoring
