LCI-100

LCI-100 Standard Display

The LCI-100 is a robust, full-featured instrument that offers exceptional performance and readability in demanding environments from -40°C to +75°C. Its multi-channel capabilities allow for future expansion, and its bright 320x240 electroluminescent display permits wide-angle readability of tension, payout, and line speed status regardless of the lighting conditions.

The heavy-duty 316 stainless steel front panel and sealed tactile pushbuttons are designed to perform flawlessly in wet and corrosive environments. Eight I/O channels and serial networking capability provide flexibility in line monitoring, weighing, or SCADA applications, and the LCI-100 can be linked with up to 32 remote LCI-90R displays to create a shipwide monitoring network.

The UL-approved LCI-100 also features an easy-to-follow English language menu for field calibration changes, I/O channel configuration, alarm settings, network settings, and screen layout - all accessed through the pushbutton keypad.

We offer a full line of tensiometers. The perfect compliment for any of our line monitoring displays or software products.

General Specifications Instrument Specifications
Power 16 W @ 85-265 VAC (Std.) Analog Input 6 channels
Enclosure Size H 8.0" x W 10.0" x D 5.5" Count Input Quadrature encoder, 5, 12-24 VDC
Inductive proximity, Half Effect
10 kHz Bandwidth
Operating Temperature -40°C to 75°C standard Digitial I/O 8 Channels
Opto modules
DC output and dry contact
Environmental Sealed waterproof front panel Serial Communications RS-485, isolated, 2 wire
RS-232, 1 channel, non-isolated



  • 320 x 240 EL (Electroluminescent) Display Readable In All Conditions
  • Five Brightness Levels and a Full 160° Viewing Range

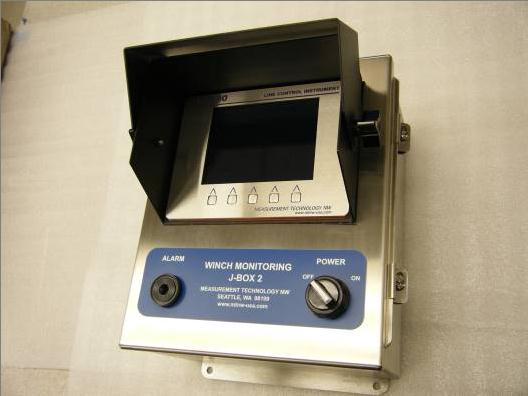

  • Fully Sealed Stainless Steel Front Panel with Available Watertight Rear Enclosure
  • Six Alarms, Independently Linked to Any High/Low Setpoint Parameters
  • On Screen Calibration, Diagnostics, and Configuration Security
  • UL and CE Rated, RoHS Exempt
