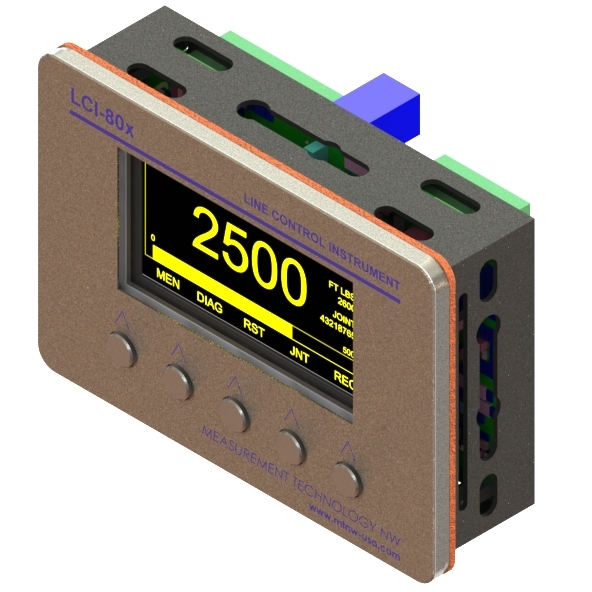

Engineered to perform in the harshest outdoor marine environments, the RPC-80x Rugged Programmable Controller offers a ruggedized compact HMI combined with today’s latest processing technology. Noted for years of performance in extreme environments where viewability is critical, the RPC-80x RPC is set apart from other panel meters, HMIs and analog gauges, not only by its robust durability but its advanced control and datalogging capabilities. Ideally suited for harsh applications from simple to advanced automatic control, versions of the controller are available preconfigured for common monitoring applications.
Five fully-sealed pushbuttons within a heavy-duty 316 stainless steel front panel access an easy-to-follow English language menu for field calibration changes, I/O channel configuration, alarm settings, network settings, and screen layout - all intuitive and right at your fingertips.
Sensor parameters are displayed on a crisp, bright 160x80 electroluminescent (EL) display with an unparalelled 179° viewing angle for unmatched readability in all light conditions. Force, rotational, analog and digital sensor input channels, multiple analog, contact, and digital I/O data channels, serial and TCP/IP networking capabilities, and USB mass storage provide flexibility in monitoring or SCADA applications, and the RPC-80x RPC can be linked with additional RPC-80x displays to create a remote monitoring network.
The RPC-80x RPC is available in panel mount configuration, or with a variety of enclosure options, including rugged weatherproof deck enclosures, portable Pelican cases, purged and pressurized and other EX rated enclosures.
| General Specifications | Instrument Specifications | ||
|---|---|---|---|
| Power |
9-36 VDC, 8W, fused/filtered Surge protected |
Measurement Inputs |
(1) mV/V (2) 4-20mA, 0-5, 0-10, ±5VDC (1) Quadrature |
| Enclosure Size | 5.6" W x 3.9" H x 2.5" D | Load Cell | 5/10 VDC Excitation, 0-20/0-100mV |
| Display |
160 x 80 graphic, EL 179° Viewing Angle Readable in all conditions |
Count Input |
Quadrature, 1x, 2x, 4x Inductive proximity (Hall Effect) Count direction Up/Down 30 kHz Bandwidth |
| Environmental |
IP65 Waterproof front panel Watertight rear enclosure options |
Digital Inputs |
(2) channels, 0-60VDC Trigger level, 2.5VDC |
| Keypad | (5) sealed front panel pushbuttons | Resolution | 24-bit analog input, 16-bit analog output |
| Panel Cutout | 5.27" W x 3.55" H | Response | Up to 1000 Hz/channel speed |
| Operating Temperature | -40°C to 70°C standard | Sensor Excitation | Regulated +5/+12/+24VDC, 0.5 A |
| Analog Output | (2) 4-20mA, 0-5, 0-10VDC, ±5VDC | ||
| Output Relays |
(2) SPDT, NO-NC 125VAC 60VDC @ 1 Amp |
||
| Serial Comms |
RS-485, isolated, 2 wire RS-232, USB, non-isolated |

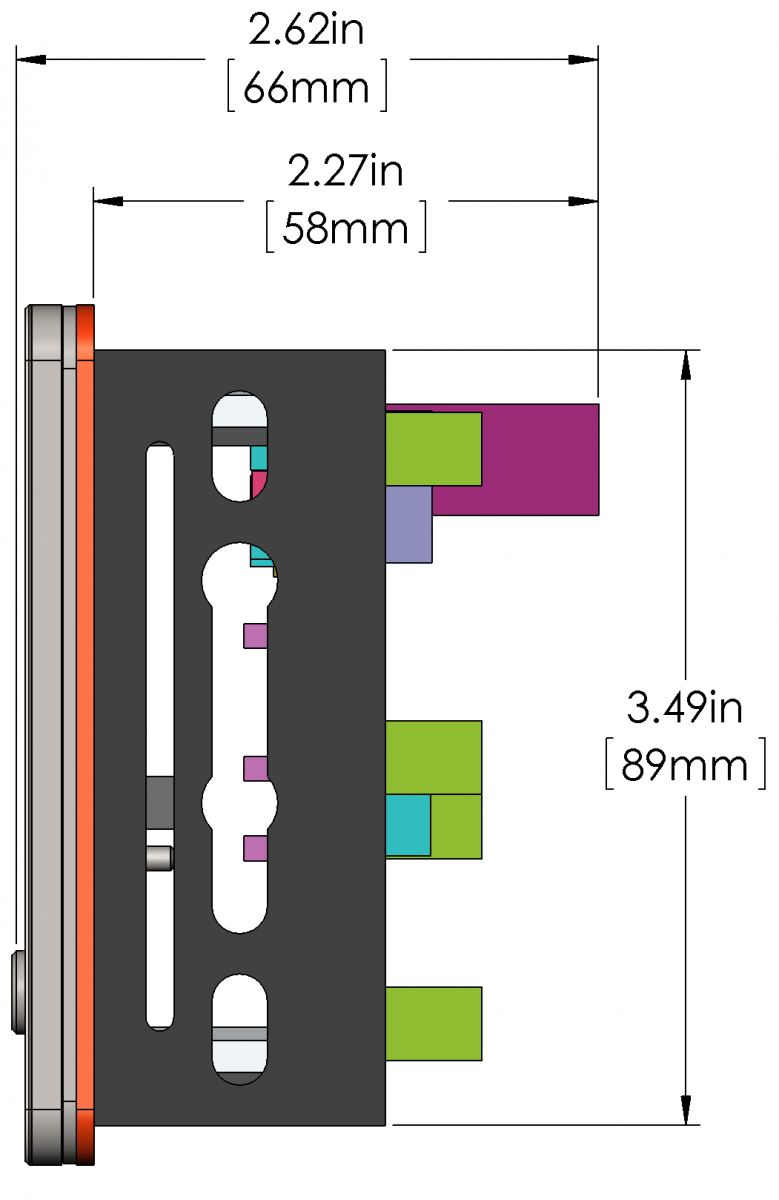

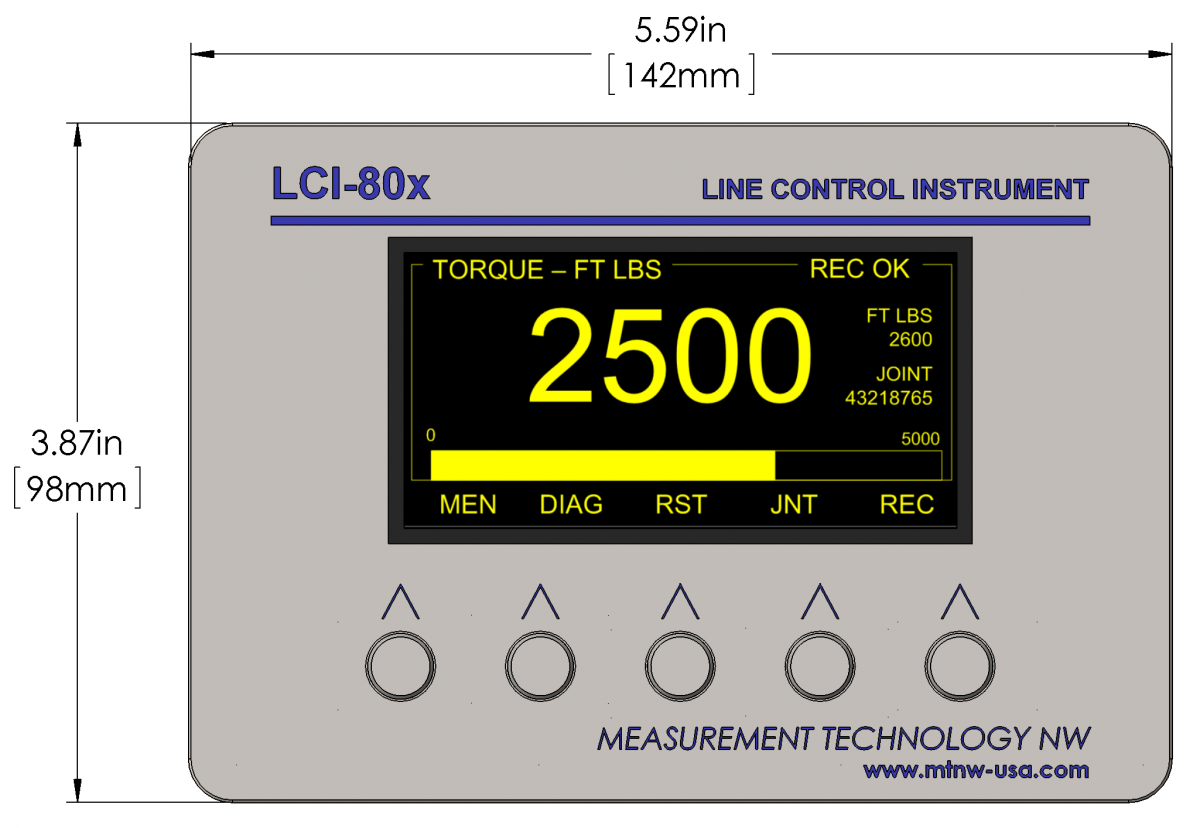

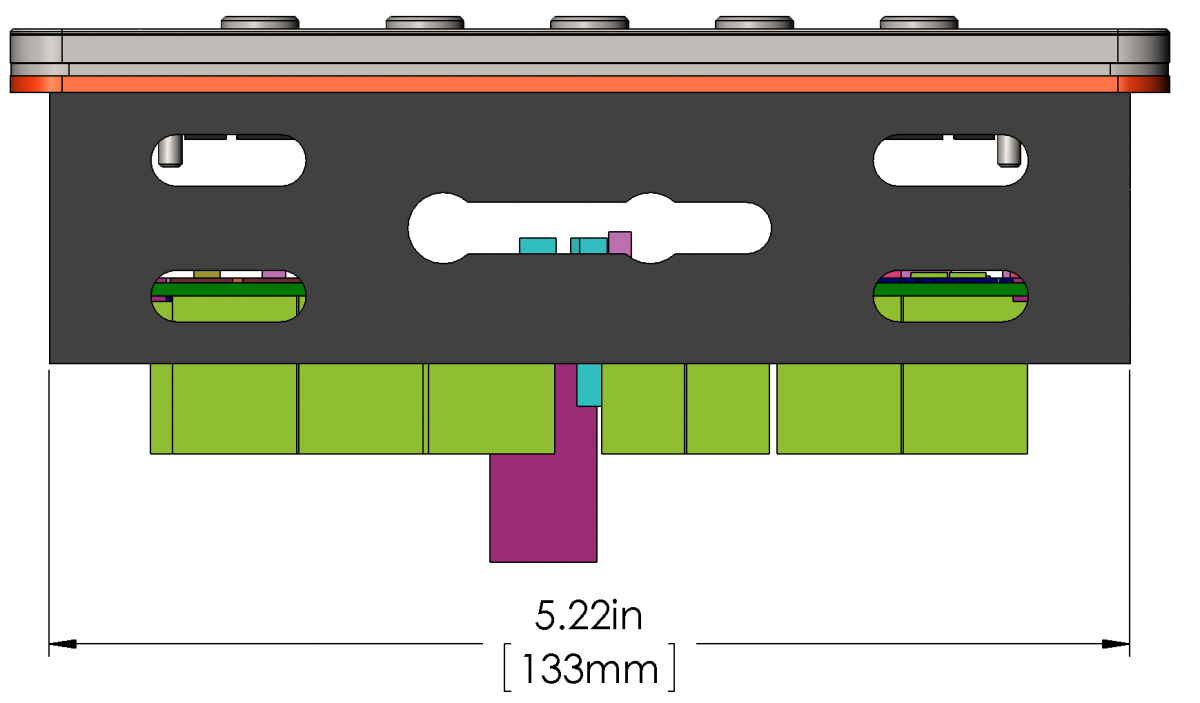

||
| Ethernet | 10 base T, TCP/IP, UDP | ||
| Comm Protocols | MTNW 1&2, Modbus, TCP/IP, USB host | ||
| USB Storage | Configurable .CSV file structure | ||
| Dimensions | |||
|---|---|---|---|
|
|
 |
||
 |
 |
||
| Preconfigured Versions | User Interface | |||
|---|---|---|---|---|
|
Crane Tension Winch |
 |
|||
|
Torque OEM Rotation |
 |
|||
|
Pressure Tension |
 |
|||
- Measure, Control and Log sensor data
- Ruggedized Stainless Steel marine duty panel mount HMI
- Electroluminescent (EL) Display viewable in any condition

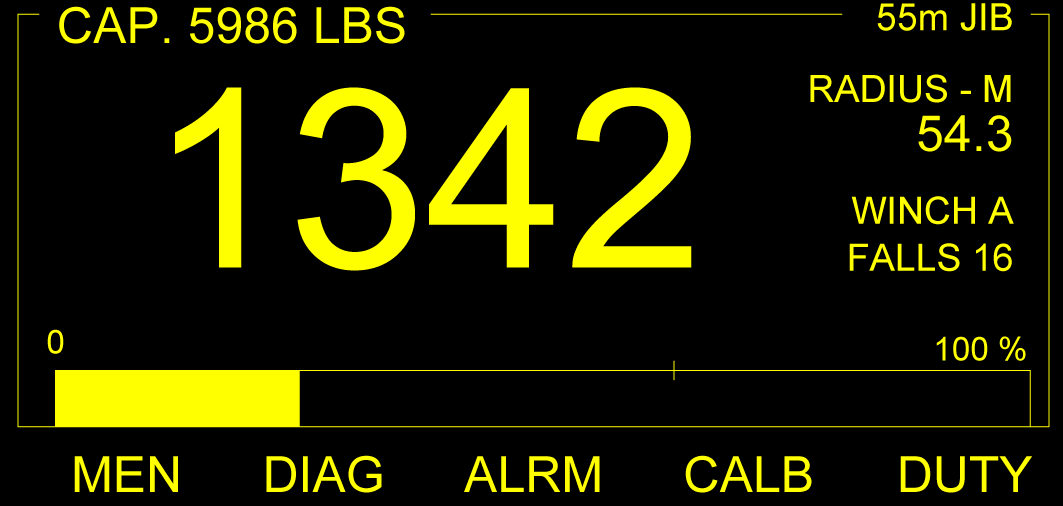

- Measurements displayed as digits, graphs, bargraphs, needles
- Advanced Mathematical function configuration
- USB mass storage - timestamp measurements and alarms
- Ethernet and serial interfaces, network configurable
- On screen calibration, diagnostics, and security
- Relays and analog output channels for safety and control functions
